Stone CNC Router
Stone CNC Router

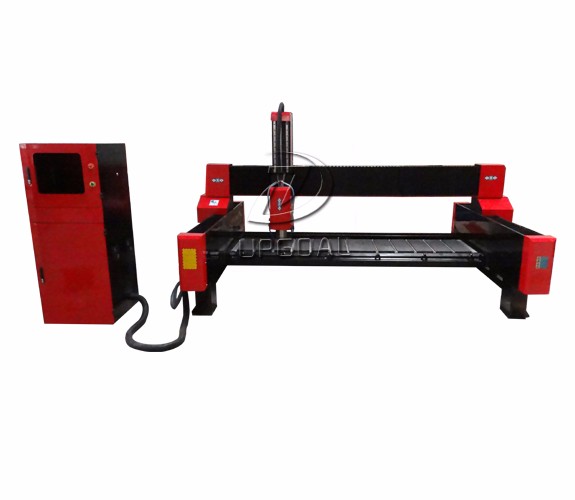

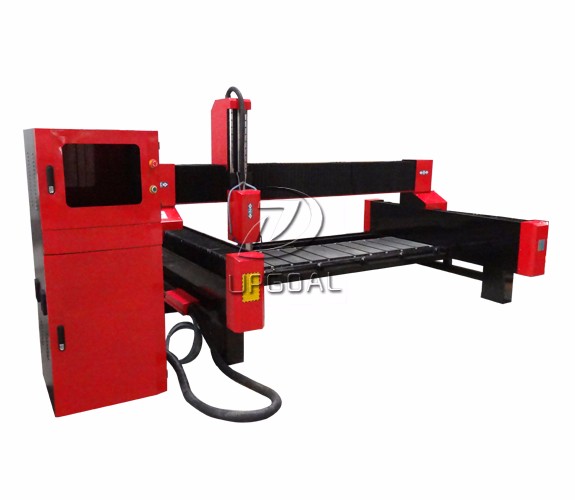

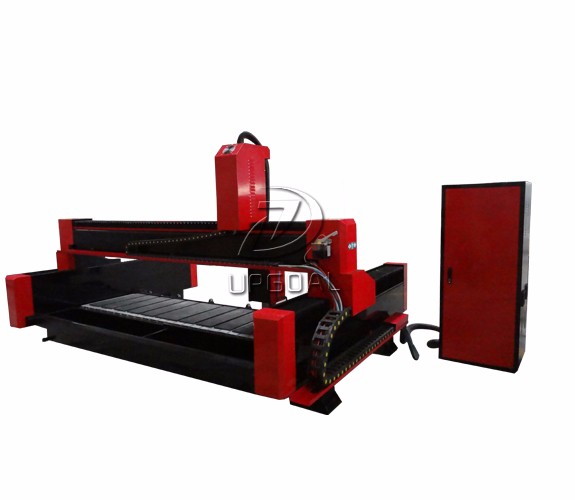

Tombstone CNC Engraving Machine with 2000*600mm Effective Working Area

Brief Introduction:

Model: UG-2060
T slot area effective working area is 2000*600mm
Y-axis effective working area is 1300mm
The empty area can for more heavy stone engraving

INQUIRY NOW

Applications

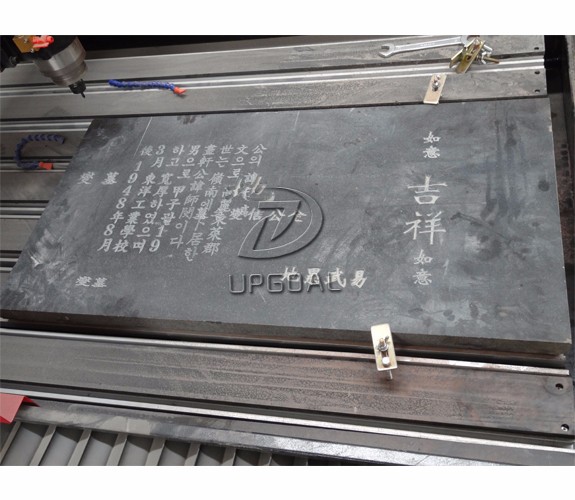

Mainly used for natural marble, granite, artificial stone, tombstone, milestone, tile, glass, bluestone,sandstone, crystal, microlite,mural, village tablet inscription, decoration skirting line,...such relief engraving, singlet line, character, flat pattern engraving, with rotary axis, can for stone cylinder,breast board, handrail, dragon columns,figure of Buddha...engraving.


Features

1.Adopted T type steel machine bed, strong rigidity, strong dynamics, ensuring the machine long time high speed moving and no deformation. Integrated stainless steel water slot with working table & machine body more convienient for water collection and circulation.

2.Special designed for light and heavy duty tombstone engraving, T slot area effective working area is 2000*600mm, Y-axis effective working area is 1300mm, so the empty area can for more heavy stone engraving, more convenient, and avoiding heavy duty stone breaking the working table, ensuring the machine long life time!

3.XYZ-axis adopted imported Hiwin, Taiwan linear square guide rail, high precision,fast speed and good wear resistance.

4. Heigh precision helical rack and pinion transmission for XY-axis,fast speed and powerful. Z-axis with double nut lead ball screw transmission, good weight capacity and stable moving.

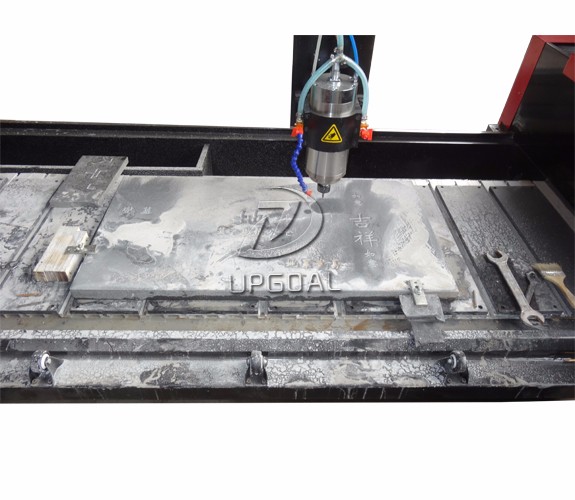

5.Powerful 5.5kw water cooling spindle, easy to engraving all kinds of stone, not only fine engraving, but also the bottom smooth and clear.

6.China hybrid servo motor and driver for XYZ-axis, high precision, faster speed and more stable than stepper motor and driver. Dual motor and driver for Y-axis, ensuring the stable moving.

7. Original PCI NcStudio control system, with high precision, low noise, showing the processing path, memory function after break point and power failure.

8. Bothway tools cooling system, effectively improve tools life time.

9. Special dustproof, waterproof device, effectively keep the transmission part cleaning and rust protection, more easy maintenance.

10. Semi-auto lubrication sysetem, more convenient and easy for whole machine lubrication.

11. Auto tool calibration, accurate and convenient for Z-axis 0 point setting.

12.Special several processing 0 point saving method.

13. Memory of break point and power failure, ensuring continue working after breaking point or next time processing.

14. Advanced file processing function, can timely correct faults, and good compatibility for Type3/Artcam/Mastercam/Caxa such file. Advanced three dimensional curve forcast algorithm, stable broken line, ensuring the curve moving speed & precision.


Working area

2000(X)mm*1300(Y)mm*450(Z)mm

Materials

More thickness T type steel pipe welded machine holder bed, cast iron gantry

Working table

Aluminum T slot,

effective working area 2000*600mm

Cooling system

Stainless steel water slot cooling

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan)

Transmission

Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis

Driving mode

China servo motor and driver for XYZ-axis

Spindle motor

5.5kw water cooling

Spindle speed

0-24000rpm

Inverter

Sunfar

Voltage

AC 380V+ 10%, 50/60Hz, three phases

Traveling speed

>28000mm/min

Engraving speed

>15000mm/min

Machine accuracy

0.02mm

Control system

Original PCI NcStudio control

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ℃

Relative humidity

30%-75%

Lubrication system

Semi-auto

Tool calibration

Auto

Certificate

CE
